Wire-rope hoist (M-series)

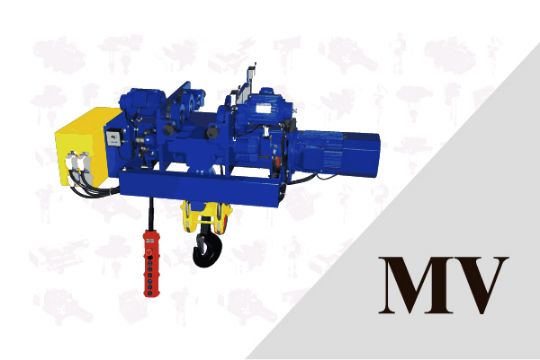

MV Type (Mono-rail hoist)

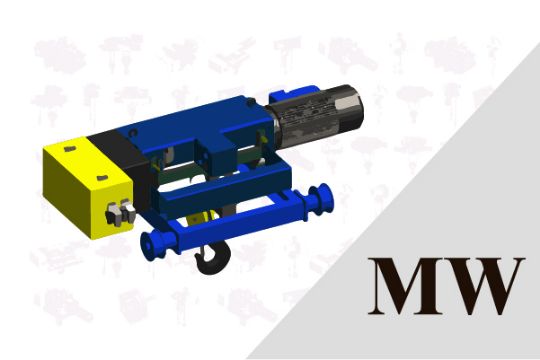

MW Type (Dual-rail hoist)

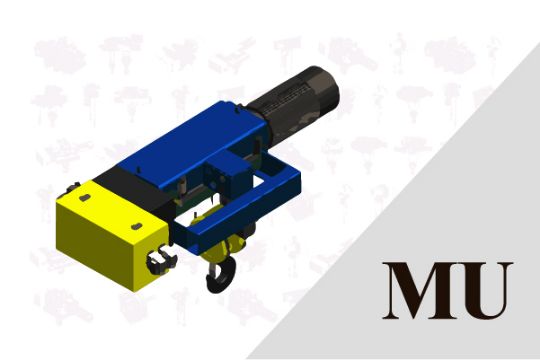

MU Type (Fixed-mounted hoist)
Control Panel
● Easy to repair:
clear instructions for parts and cabl repairing, arranged by FiTOP engineering team
● Reliable:
( 1 )electro-magnetic contactor with machinery locker and varistor, extends its life-span
( 2 )aviation plug: fine and reliable
● Conforms with international standard: CE electricity 73 / 23 / EEC, IP 54
Pendant
● Water-and dust-proof
● Durable: integrally formed plastic housing, highly insulated
● Safe: emergency stop, a safety switch for the well-being of operators
Spiral Limit Switch
● Avoid twining:
its spiral, linear limit design by FiTOP which prevents rope to twin with the emergency limit switch
● Accurate:
a complete set of limit switch, enables setting its upper and lower limit at the same time; easy to ad」ust and maintain; highly reliable
● Free from danger:
automatically disconnects the power when the hook comes to the highest and lowest points
Drum
● Solid:
precisely constructed from high-tension, seamless steel tube fabricated by FiTOP, making a smooth groove surface, well protects the wire rope
● Meets international standard:
(1)ISO 4308
(2)EFEM9.661/86
Balance Sheave
● Strong:
FiTOP design enables swinging freely; turning, supports by bearing; closed-cover design, prevents the wire rope slips off from the alignment
● Shaft-typed overload detector (optional):
prevents over-loading by a shaft installed
Wire Rope
● High-tension steel:
(1) reinforced wire rope from Japan; tensile strength: 1170N / mm²~ 2160N / mm²
(2) factor of safety: above 5 times, endures bending
Emergency Limit Switch
● Protected :
uniquely designed by FiTOP, automatically disconnects the power when the hook comes to the highest and lowest points; precise, easy to maintain and adjust
Hook Set
● Strong :
high-pressure die casting, abrasion-resistance
● Protective:
(1) hook wheel and cover designed by FiTOP avoids foreign bodies to be drawn into the hook set
(2) safety tab ensures safe operations
Gearbox
● Long life-span:
FiTOP state-of-the-art designed and manufactured planetary design; small-sized, runs smoothly without affecting by radical force which extends the life-span of bearings and gears
● Precise:
the material is made of a processed alloy steel by heat treatment,making its hardness HRC SO'C at least
● Low noise & free to maintain:
hidden design; noise level 65 dB under no-loading conditions; all oil-bath sealed design, apply with grease; no leaking concern; free to replace
Wire Rope Guide
● Drum-typed strut :
rotates with the movement of wire rope, ensures wire rope to be aligned on the drum as FiTOP designed; extends the life-span of wire ropes; the limit design for bearing and press-lever-shaft ensures that pressing lever not off the track due to external pressure
Limit Switch
● Easy to maintain:
precise; easy to adjust
● Out from danger:
able to detects when wire ropes occasionally leap into other grooves, would turn on the switch and disconnect the power as FiTOP designed
Brake
● Safe :
automatically brakes in occasion of power failure, the brake releases when the motor starts operation
● Enables inching adjustment :
can manually lower the material lifted in occasions of power failure without using hand tools etc
● Highly durable brake lining :
can be used up to one million times under normal conditions
● DC electro-magnetic-disk brake
Hoisting Motor
● 4P or 2/12P selective
● Insulation: F-graded
● Intermittent rating:
(1) 40% ED for mono-speed
(2) 30% ED for dual-speed
● Great operation efficiency:
FiTOP-designed three-phase squirrel-cage induction motor; starting torsion up to 250%
● Great heat dissipation & high-voltage-proof :
aluminium alloy box, high torque, slow temperature rise; installed with cooling
fan and over-heat protector; efficiently dissipates heat for the motor thus
prevents burning; sustains above 1500V; small-sized, low current, great output,
sustains long hour service
Trolley Motor
● High-tension, aluminium alloy cover:
the gear is made of alloy steel, state-of-the-art made by FiTOP; abrasion-and crash-proof, safety factor above 5 folds, long life-span
● High-frequency service:
efficient starting torque, small-sized, low current, can be used for long hours
● Impact buffer (optional):
avoids impact at starting and braking; loadings remain stable
Overload Protector
● Secure:
(1) integrated with side axle; stable, small-sized, space-saving, and highly sensitive
(2) prevents over-loading; the device would disconnect the power of motor when an over-weighted material is lifted
(3) can electronically turn lower the limit to a lighter loading level for greater safety
