Chain hoist (C-series)

CTS (Hook type)

CTS (Hook type)


CTE (Lug type)

CTE (Lug type)


CTD (Motorised, monorail-trolley type)

CTD (Motorised, monorail-trolley type)


CTH (Double-girder, Top-running-trolley type)

CTH (Double-girder, Top-running-trolley type)


CTY (Plain-trolley type)

CTY (Plain-trolley type)


CTZ (Geared-trolley type)

CTZ (Geared-trolley type)

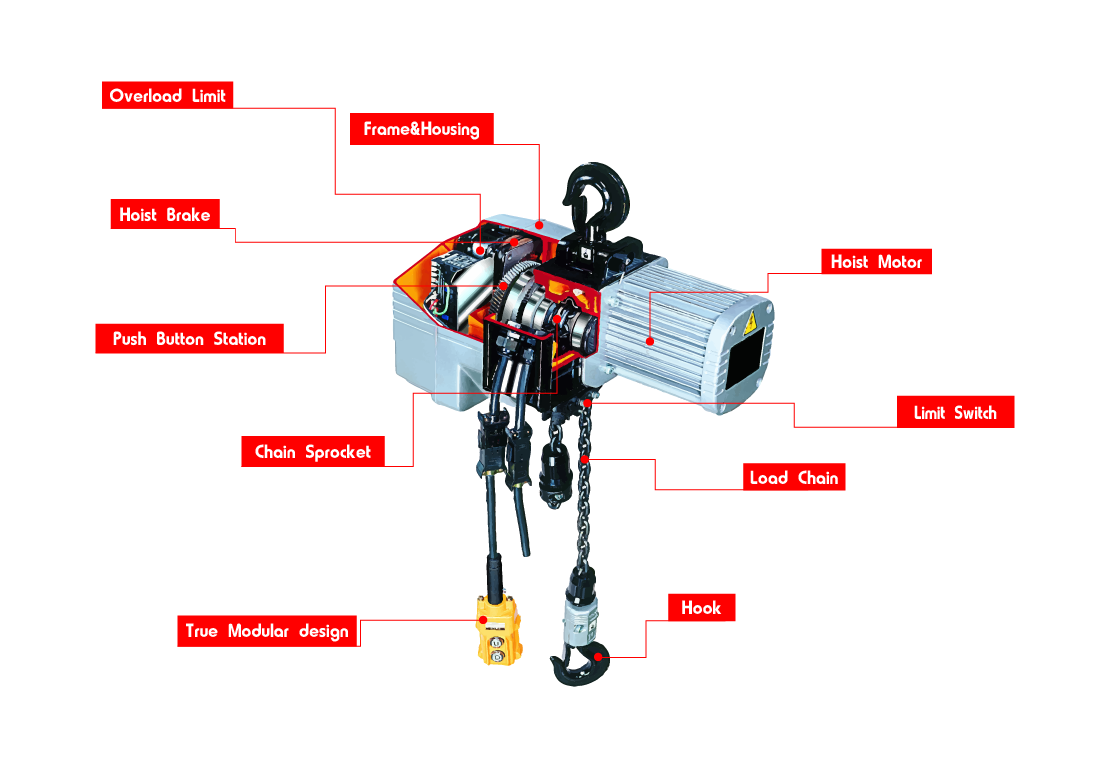

Frame&Housing

The load-supporting frame is cast in one piece from aluminum alloy by gravity die-casting(TYPE CT03 , CT07 , CT15 and CT30) or nodular cast iron (TYPE CT45 , CT60 and CT75 ) to ensure structural integrity.

●Lightweight modular design has fewer parts and is easy to install and maintain.

Frame and control enclosure are IP55 weather protected against ingress of dust and water.

●Baked finish gives the frame superior resistance to harmful environments.

(Patent#055843.)

HOIST BRAKE

●DC disc brake with two flat-faced brakes discs(asbestos free) with a life of more than 1 million actuations , patent pending.

●Oversized brake disc's lower surface stress and prolong brake life , frequent adjustments are not necessary.

 ●Holding brake can be manually released to lower the load in the event of a power failure or malfunction without special tools.

OVERLOADLIMIT

●New Design:The load-limiting clutch does not break the kinetic bond between the holding brake and the lifted load , patent pending.

●External Access:The hoist gearbox does not have to be disassembled to service the load-limiting clutch.

EXTRA HEAVY DUTY HOIST CONTROL

●Telemecanique ( Square D ) magnetic contactors chosen specifically for extra heavy-duty service have a rated life of more than one million cycles.

●Reversing contactors are mechanically interlocked for added safety.

●24 Volt , low voltage control transformer standard. (48 Volt option.)

GEAR BOX

●Multi-Stage high performance gear train , gear teeth are precision machined for long life and quiet operation.

●Planetary gear drive used for the final high torque reduction , all forces are balanced.

●Permanently lubricated for life.

PUSH BUTTON STATION

●Molded reinforced high insulation plastic housing is impact , weather , corrosion and fire resistant.

●Double insulated design.

 ●Push button switches are mechanically interlocked for added safety.

 ●Strain relief cable is molded into the pendant cord.

TRUE MODULAR DESIGN

●Hoist motor can be removed with the hoist fully loaded. Chain sprocket can be removed without disassembling the gearbox . Load limiting clutch can be serviced without opening the gearbox .

●Plug in the push button and power cord.

CHAIN SPROCKET

●CNC machined alloy steel lifting sprocket is heat treated for maximum performance.

●High precision chain sprocket has more than 5 times the life of an investment casting sprocket.

●Advanced modular design enables replacement of the lifting sprocket without dismantling the hoist gearbox and without the use of special tools.

LIMIT SWITCH

●Upper and lower limit switches can be adjusted to stop the hook in any position.

●Limit switch has built in chain guides to safely stop the load in the event of twisted or damaged chain, also prevents non-vertical lifting.

LOAD CHAIN

●Grade 80 super alloy load chain is precisely calibrated and heat-treated for long life.

●Safety factor is more than 6-1.

●Surface hardened chain standard.

●Non-Acid processing galvanized plating chain can be choosed for resistance against corrosion.

HOOK

●Drop forged from alloy steel and heat-treated for strength and toughness , will not fracture but open slowly when overloaded.

●Equipped with safety latch and 360° swivel hook.

HOIST MOTOR

●Squirrel cage parallel rotor motor designed specifically for hoist duty.

●Modular design facilitates maintenance , the hoist motor can be removed with the hoist fully loaded for testing and or replacement.

●Separate mounting of the motor and brake prevent local heat buildup.

●Motor housing is extruded from aluminum alloy.

●Cooling fins increase surface area for maximum heat radiation.

●Class H insulation standard 180°C rise from 40°C ambient.

●Thermal protection via 145°C rated N.C. overload switch embedded in motor windings.

●Duty rating is 60%ED , 360 starts per hour for single speed three phase hoist , equal to HMI Classification H4.

●TENV and IP54 totally enclosed construction can withstand harsh environments. ( IP55 option.)

●Single speed 4 pole ( 1800 RPM ) motor standard , two speed-two winding 4/12 pole(1800/600 RPM) 3/1 ratio motor and control optional.
